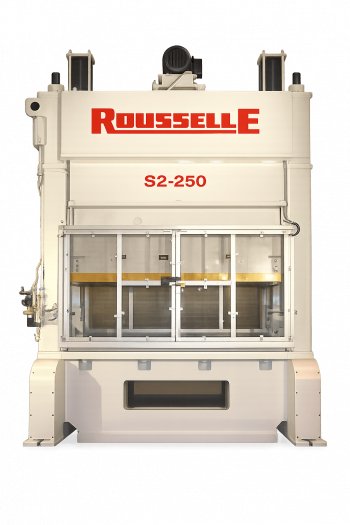

The Rousselle Two Point Straight Side Press
The Rousselle Two Point Straight Side Press is available in 150 to 400 ton capacity.
Rousselle presses are designed for exceptional value and come in a variety of configurations to meet practically every need. Every Rousselle press is manufactured in the USA and supported by a team that stands behind every machine we make.
Standard Features
- All-welded steel frame with double-wall bed construction
- Pre-stressed tie rods to ensure minimum deflection
- Drive capacity rated 1/4″ above bottom of stroke
- Eccentric geared motion
- Adjustable 8-point gibbing
- Air counterbalance system
- Combination air clutch and brake
- Solid-state press control (ANSI B11.1)
- Above-floor construction
- Bolster plate
- Powered slide adjustment with digital position indicator
- Self-monitoring automatic lubrication system
- Ball-type adjustment screw with bronze seat
- Operator station with dual run, emergency stop, and stop-on-top palm buttons
- Supervisory key selector switch (off, single stroke, inch, continuous)
- Brake monitor
- Motion detector
- Dual air valve
- Forward / reverse feature
- Stroke counter
Optional Features
- Stroke lengths other than standard
- Shut heights other than standard
- T-slotted slide and bolster plate
- Pedestal for operator station
- Variable speed drive
- Custom bed sizes
- Hydraulic overload system
- Die cushions
- Flywheel brake
- Tonnage monitor
- Console-mounted controls
- Custom speeds
