Straight Side Frame Press

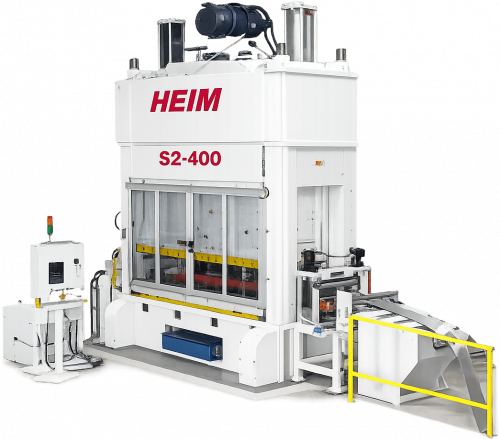

The Heim Straight Side Frame Press Maxi-Stamper® is available in 200 to 1,000 ton capacity.
Heim presses are designed for maximum performance and reliability. They are equipped with an extensive list of must-have features for demanding applications. Every Heim press is manufactured in the USA and supported by a team that stands behind every machine we make.
Standard Features
- Steel fabricated construction
- Drive capacity rated 1/2″ above bottom of stroke
- Self-diagnostic solid-state controller
- Moveable operator console
- Low inertia combination air clutch and brake
- Tie rod construction
- Eccentric gear drive system (in oil bath)
- Enclosed crown
- Bed areas up to 192” x 84”
- Motorized slide adjustment with digital
- Position Indicator
- Adjustable, full length 8 point square gibbing
- Recirculating lubrication system
- Helical intermediate gears
- Dual air valve
- Air counterbalance system
- Hydraulic overload system
- Ball type adjusting screw and bronze seat
- Brake monitor with light indicator
- Shut height to your requirements
- Bolster plate
- Forward/reverse selector switch
- Electric counters
- T-slotted slide and bloster
- Hydraulic tie rod nuts
- Bed deflection .0015” per ft.
Optional Features
- Variable speed drive
- Provisions for die cushions
- Die cushions
- Flywheel brake
- Tonnage indicator
- Light curtains
- Special drilling and machining
- Additional operator stations
- Knockout bar
- Special bed sizes
- Isolator pads
- Custom speeds
- Custom systems interface
- Die protection
- Hydraulic clutch
