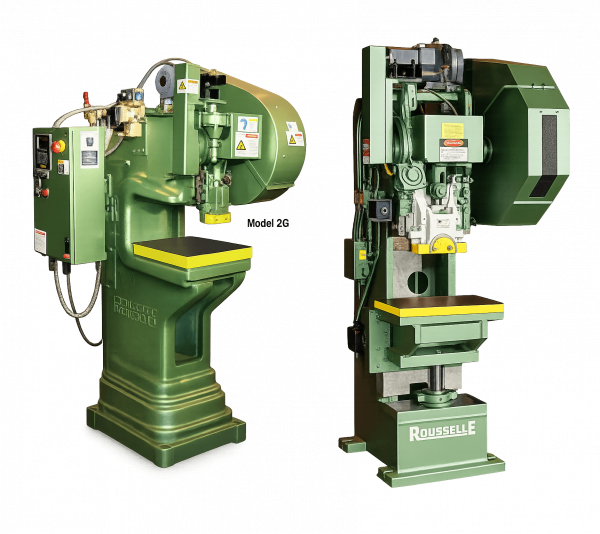

The Rousselle Deep Throat & Adjustable Bed Horn Press
The Rousselle Deep Throat & Adjustable Bed Horn Press is available in 15 to 60 ton capacity.
Rousselle presses are designed for exceptional value and come in a variety of configurations to meet practically every need. Every Rousselle press is manufactured in the USA and supported by a team that stands behind every machine we make.
Standard Features
- Cast frame (F and G models) Steel frame (40 and 60 ton) Horns
- Air clutch and shoe brake
- Crankshaft motion (40 and 60 ton)
- Eccentric shaft motion (15 and 25 ton models)
- Wrist pin connection
- V gibbing
- Air counterbalance system (60 ton and up)
- Bolster plate
- Manual grease lubrication
- Solid-state press control (ANSI B11.1)
- NEMA 12 enclosure mounted on press
- Operator station with dual run, emergency stop, and stop-on-top palm buttons
- Supervisory key selector switch (off, single stroke, inch, continuous)
- Brake monitor
- Motion detector
- Dual air valve
- Pressure switches for clutch/brake and counterbalance
- Forward / reverse feature
- Stroke counter
Optional Features
- One-shot lubrication system
- Self-monitoring automatic lubrication system
- Stroke lengths other than standard
- T-slotted bolster
- Bolster burnout
- Special drilling and machining
- Pneumatic flywheel brake
- Shaft extension
- Custom speeds
- Variable speed drive
- Bar turnover with key selector switch
- Pedestal for operator station
- Tonnage monitor
- Remote mounted controls
- Additional operator station
