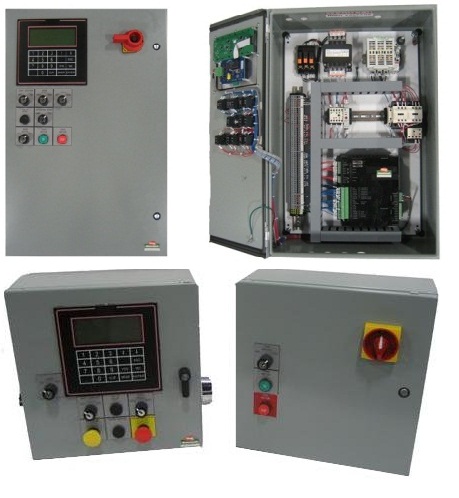

Control Retrofits


RETROFIT ELECTRICAL CONTROL PACKAGES ARE AVAILABLE TO CONVERT YOUR OUTDATED HEIM OR ROUSSELLE POWER PRESS TO COMPLY WITH OSHA.


MODES OF OPERATION
TWO HAND INCH: TWO HAND SINGLE STROKE: TWO HAND “WALK AWAY” CONTINUOUS: AUTOMATIC SINGLE STROKE AND TWO HAND MAINTAINED CONTINUOUS.

FEATURES
MEETS OSHA STANDARDS, PROVIDES TWO HAND CONTROL SAFEGUARDING DEVICE, NEMA 12 ENCLOSURE, MAIN POWER DISCONNECT, REDUNDANT CROSSCHECKING MICROPROCESSOR, REDUNDANT MICROPROCESSOR LOGIC POWER SUPPLY, TRIPLE REDUNDANT RELAYS, KEYPAD DISPLAY, ABSOLUTE RESOLVER FOR MOTION DETECTION, TIME BASED BRAKE MONITOR, EIGHT PROGRAMMABLE INPUTS, STROKE/BATCH COUNTER, FORWARD REVERSE SWITCH, LIGHT CURTAIN INTERFACE, 3 PLS OUTPUTS, RS 232 SERIAL PORT.

KEYPAD DISPLAY
THE KEYPAD DISPLAY IS USED TO ENTER SETUP INFORMATION, MONITOR OPERATION, AND DISPLAY MESSAGES. IT HAS A 4 LINE 20 CHARACTER LCD WITH 20 KEYS FOR ENTERING INFORMATION AND PROGRAMMING.
